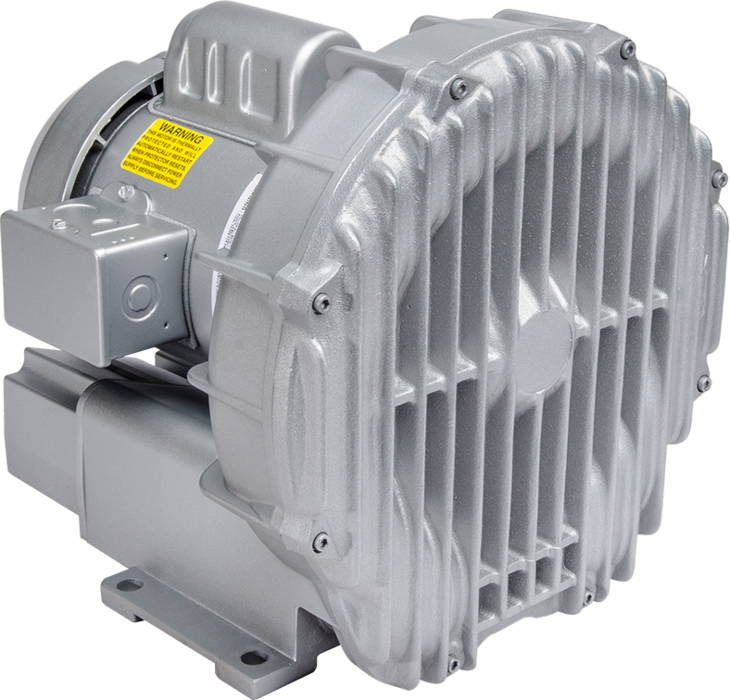

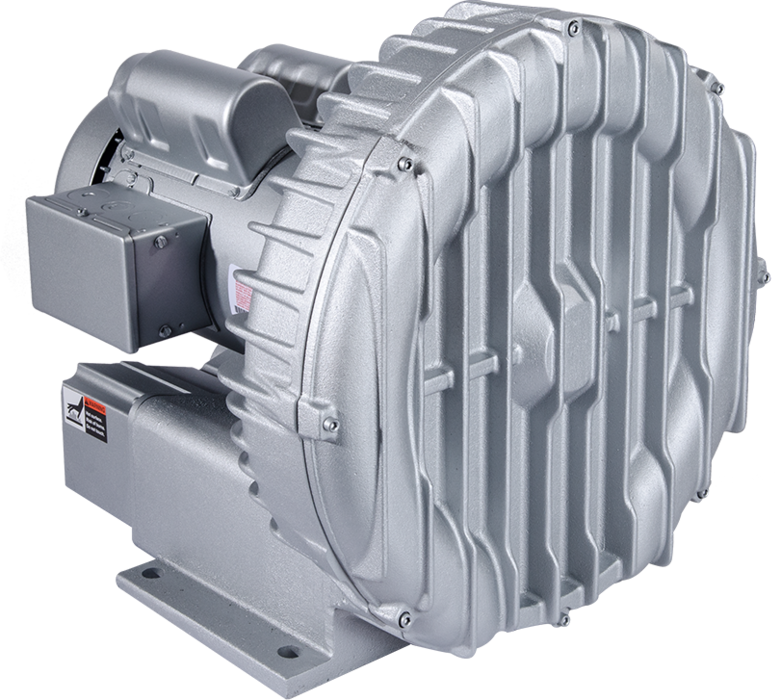

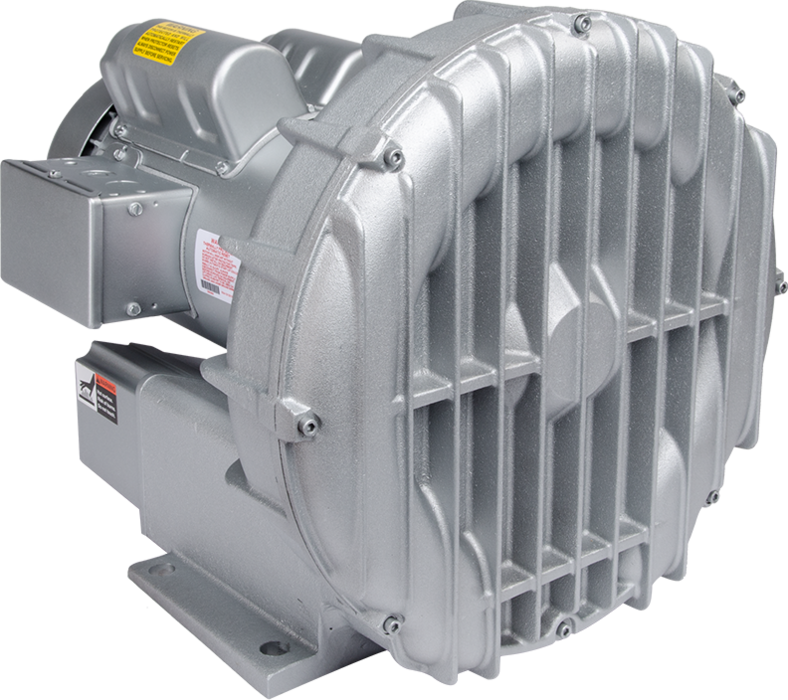

Dmuchawy bocznokanałowe GAST
Oferujemy pełną gamę dmuchaw bocznokanałowych firmy Gast, które nie potrzebują smarowania i praktycznie nie wymagają konserwacji. Dostarczamy zarówno modele z napędem silnikowym, jak i oddzielne.
Dane techniczne:
| Model | R1 | R2 | R3 | R4 | R4P | R5 | R6 |
|---|---|---|---|---|---|---|---|
| Max do 1/8 KM (0,09 kW) | Max do 1/3 - 1/2 KM (0,25 - 0,37 kW) | Max do 1/2 KM (0,37 kW) | Max do 1 KM (0,75 kW) | Max do 1,5 KM (1,1 kW) | Max do 2,5 KM (1,86 kW) | Max do 2,5 - 5 KM (1,89 - 3,73 kW) | |
| Max przepływ (60 Hz) | 27.0 cfm (46.0 m3/h) | 42.0 cfm (71.0 m3/h) | 53.0 cfm (40.0 m3/h) | 92.0 cfm (156.0 m3/h) | 127.0 cfm (216.0 m3/h) | 160.0 cfm (272.0 m3/h) | 215.0 cfm (365.0 m3/h) |
| Max ciśnienie (60 Hz) | 28.5 in-H2O (71.0 mbar) | 39.0 in-H2O (97.0 mbar) | 55.0 in-H2O (137.0 mbar) | 52.0 in-H2O (130.0 mbar) | 65.0 in-H2O (162.0 mbar) | 65.0 in-H2O (162.0 mbar) | 105.0 in-H2O (262.0 mbar) |
| Max próżnia (60 Hz) | 26.5 in-H20 (66.0 mbar) | 35.0 in-H20 (87.0 mbar) | 50.0 in-H20 (125.0 mbar) | 48.0 in-H20 (120.0 mbar) | 60.0 in-H20 (149.0 mbar) | 60.0 in-H20 (149.0 mbar) | 88.0 in-H20 (219.0 mbar) |
| Model | R6P | R7 | R7P | R9 | R9P | SDR5 | R4H |
|---|---|---|---|---|---|---|---|
| Max do 5,5 KM (4,1 kW) | Max do 10 KM (7,46 kW) | Max do 18 KM (13,4 kW) | Max do 15 KM (11,3 kW) | Max do 30 KM (22,4 kW) | Max do 10 KM (7,5 kW) | Max do 6 KM (4,5 kW) | |
| Max przepływ (60 Hz) | 290.0 cfm (493.0 m3/h) | 420.0 cfm (714.0 m3/h) | 795.0 cfm (1351.0 m3/h) | 680.0 cfm (1155.0 m3/h) | 1350.0 cfm (2294.0 m3/h) | 240.0 cfm (408.0 m3/h) | 128.0 cfm (217.5 m3/h) |
| Max ciśnienie (60 Hz) | 110.0 in-H2O (274.0 mbar) | 125.0 in-H2O (311.0 mbar) | 105.0 in-H2O (262.0 mbar) | 125.0 in-H2O (311.0 mbar) | 125.0 in-H2O (311.0 mbar) | 152.0 in-H2O (379.0 mbar) | 284.0 in-H2O (700.0 mbar) |
| Max próżnia (60 Hz) | 90.0 in-H20 (224.0 mbar) | 110.0 in-H20 (274.0 mbar) | 95.0 in-H20 (237.0 mbar) | 115.0 in-H20 (286.0 mbar) | 110.0 in-H20 (274.0 mbar) | 120.0 in-H20 (299.0 mbar) | 183.0 in-H20 (457.0 mbar) |
